The introduction of constant velocity joint cages

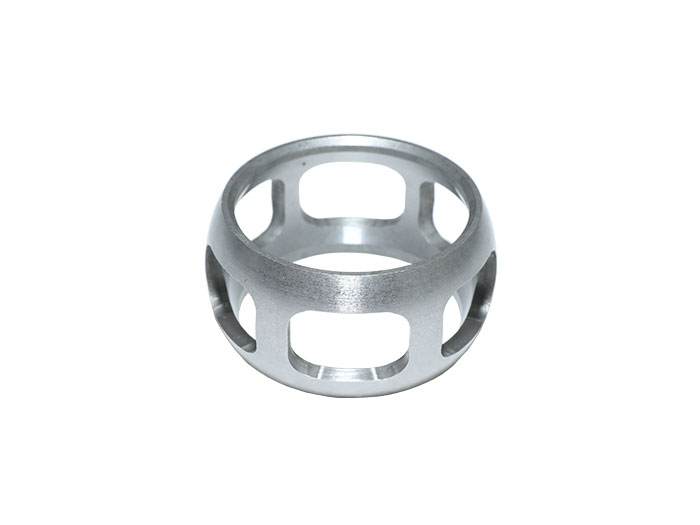

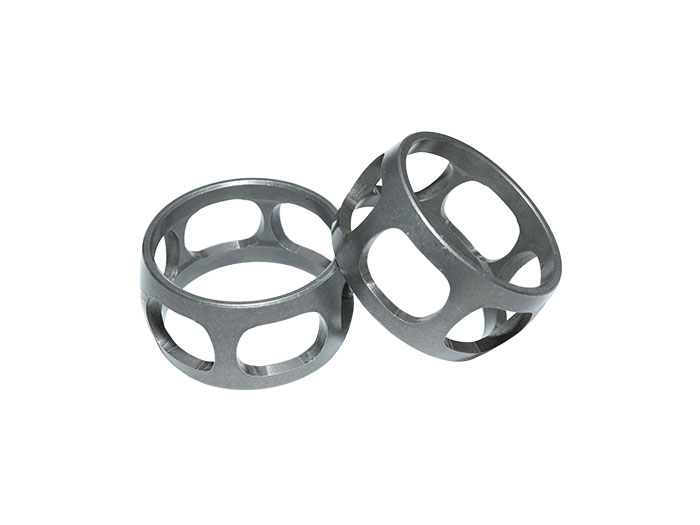

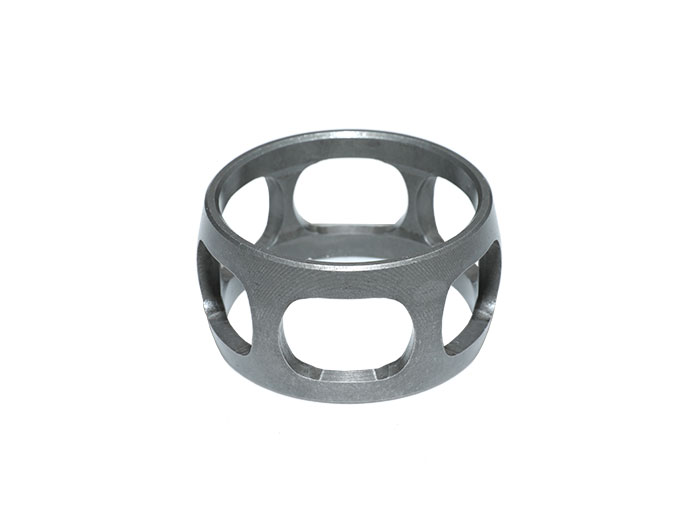

The CV Joint Cage, also known as a Constant Velocity Joint Cage
, is an essential component in the functioning of a car's drivetrain. It is a component of the constant velocity joint, which is a type of flexible joint used in automotive driveshafts to transmit torque while accommodating shaft misalignment. The CV Joint Cage serves as the outer shell of the joint and is responsible for maintaining the precise alignment of the balls or rollers within the joint.
The main function of the CV Joint Cage is to support and guide the balls or rollers, which are the parts of the joint that allow for the transfer of torque and power from the engine to the wheels. It also helps to reduce friction and wear within the joint, extending its lifespan and improving overall performance.
CV Joint Cages
are typically made of high-strength materials such as steel or aluminum, and are designed to withstand the extreme temperatures and high-speed conditions that are present in a car's drivetrain. The design of the cage can vary depending on the specific type of joint, but the basic principle remains the same: to provide a secure and stable structure for the balls or rollers within the joint.
The cage serves several important functions, including:
Protecting the internal components of the CV joint from damage
Maintaining proper alignment of the moving parts
Reducing friction and wear by separating the moving parts from each other
Containing the lubricating grease used to lubricate the joint
The cage of the CV joint is typically made from a hard, durable material such as steel or aluminum. It is designed to withstand the high loads and stress generated by the moving parts of the joint, as well as exposure to the harsh environments encountered in automotive applications.
The introduction of the cage in CV joints revolutionized automotive drivetrains by allowing for more efficient power transfer and improved reliability. Today, CV joints are used in a wide variety of vehicles, including front-wheel drive, all-wheel drive, and four-wheel drive vehicles, and play a critical role in delivering smooth and responsive power to the wheels.
